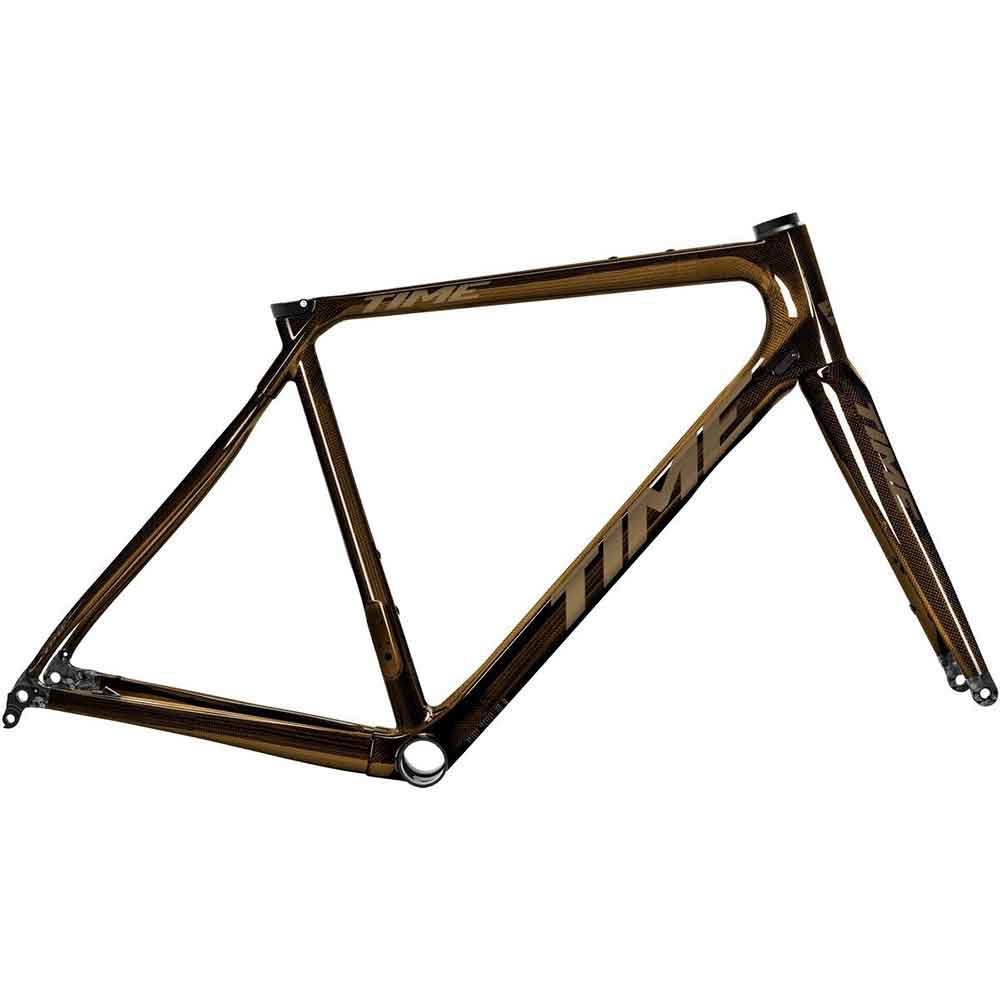

Time ADHX gravel frameset

MSRP : USD 3,800.00

Price : USD 3,799.00

color*
frame*

amber/XS

Units

TIME’s debut gravel bike has quickly notched several victories – our ADHX (Alpe d’Huez X) is the first of its kind to incorporate Bio-Based Dyneema®, the World’s Strongest Fiber®, to build a better performing machine. It’s the first to utilize braided carbon structure (BCS) manufacturing, a TIME exclusive that outperforms traditional carbon prepreg construction in almost every way by incorporating several types of fiber into each multidirectional braid. The ADHX is first in quality and tolerance control thanks to our highly accurate resin transfer moulding (RTM) process and is manufactured entirely in the EU using one of the most sustainable manufacturing processes in the industry. TIME’s first performance gravel offering is more than a cursory nod – in many ways the arrival of the ADHX makes it the clear leader in a very crowded field – with pedigree to spare, an iconic look and an attitude eager to make a splash.

Bio-Based DYNEEMA® Fiber is Lighter, Stronger and Smarter

Dyneema® fiber is 15x stronger than steel at the same weight and is so light that it floats on water. The promise of integrating Dyneema® in carbon structures has been making headlines for years now, but to date very few manufacturers have been able to incorporate the material. TIME is different–we aren't reliant on materials availability from large carbon prepreg manufacturers. By weaving our own braided carbon structures (BCS) we have been able to test strands of sustainable Bio-Based Dyneema® fibres since they first became available from DSM. And unlike the high temperature ovens used to cure standard prepreg frames, the lower resin temperature of the RTM injection process is well within the safe temperature range for Dyneema®

Is It Your Time?

ADHX is perfect for riders who want a top-performing “fast gravel” machine. Weight, stiffness, comfort and handling are cornerstones – as important as the knowledge that ADHX is technologically unique. Racers, All Road explorers and everyday riders seeking an experience off the tarmac will find ADHX checks the boxes.

FRAME MATERIAL
- BCS Carbon Fiber - Dyneema® Enhanced
SIZES
- XS, SM, MD, LG, XL
FORK STEERER TUBE
- Tapered 1-1/8" to 1-1/2"
HEADSET BEARINGS
- Top and Bottom: 1-1/2" (with compression ring for internal cable routing)
WHEEL SIZE
- 700c, ETRTO 38-622
MAXIMUM TYRE WIDTH
- 38c (not all tire/rim combinations fit, please check for appropriate clearance)
BOTTOM BRACKET
- BB386
THRU AXLES
- 12x120x1.5mm Pitch F, 12x159x1.5mm Pitch R
SEATPOST DIAMETER
- 27.2mm
SEATPOST CLAMP
- Proprietary ADHX Alloy
SHIFTING
- Compatible with Electronic and Standard Shifting Systems
FRONT DERAILLEUR
- 1X and 2X Compatible with Integrated Single Cover and Drivetrain Conversion Kit
REAR DERAILLEUR
- Standard Mount
DISC HUB STANDARD
- 12x100mm F, 12×142mm R
FRONT BRAKE
- Front and Rear Flat Mount Disc
ROTOR SIZE
- 140/160mm with Adapter

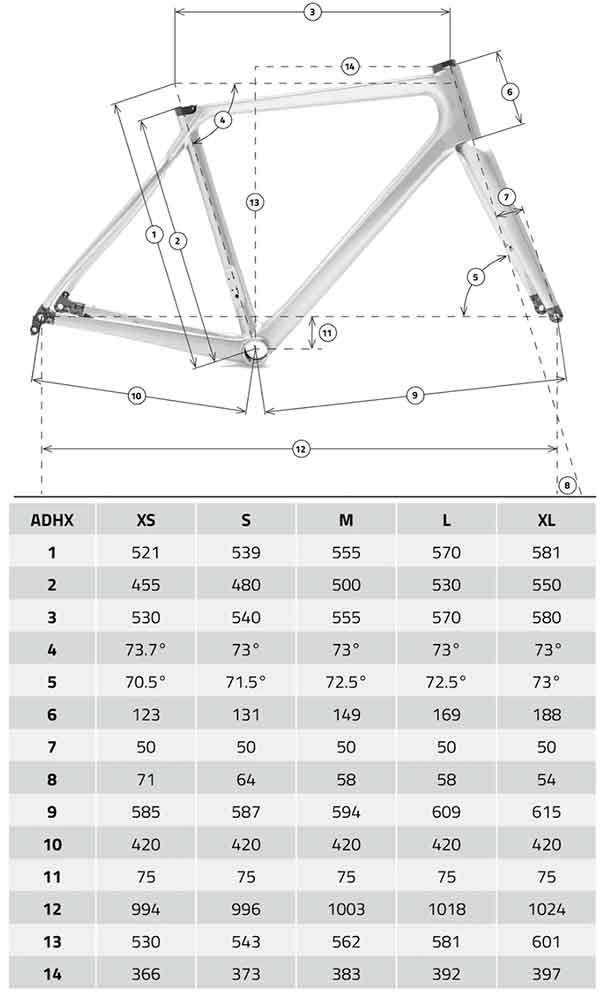

Time ADHX Geometry
